Attenuator (TSD)
Flexible or rigid execution
ALUFLEX
- External and internal duct made from perforated ALUFLEX duct
- Non combustible insulation layer (25 mm or 50 mm)
- End caps optionally with male coupling or lip sealing
- Optional: Rigid execution, stainless steel
- Optional: External duct made from galvanised steel, internal duct made from perforated ALUFLEX duct
- Optional: External duct made from galvanised steel, internal duct made from galvanised perforated plate
ALUFLEX attenuators
are also based on Aero ALUFLEX ducts. The inner duct is mechanically perforated in the area of the insulation section. The non combustible insulating layer is coated with abrasion-proof glass fibre and available in thickness of 25, 50, 75 and 100 mm. Page 8 of the brochure lists the values of sound dissipation (insertion loss) in correlation to insulation thickness. End caps made from galvanised sheet steel ensure easy duct installation. The bending radius is according to the nominal width the 2 to 2,5-fold of the diameter of the external duct. The Aero ALUFLEX attenuators can also be installed in bent shape.
Cross-talk sound attenuator
are also available in two additional versions:
1. External duct made of galvanised sheet steel, perforated inner duct made of two-ply aluminium strip, insulation layer the same as the Aero ALUFLEX attenuator
2. External duct and perforated internal duct made of galvanised sheet steel, insulation layer the same as the Aero ALUFLEX attenuator

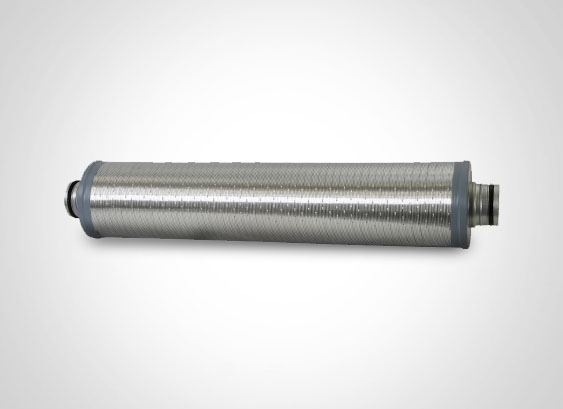

ALUFLEX ATTENUATOR TSD Aluminium Standard , Ref. No. 13

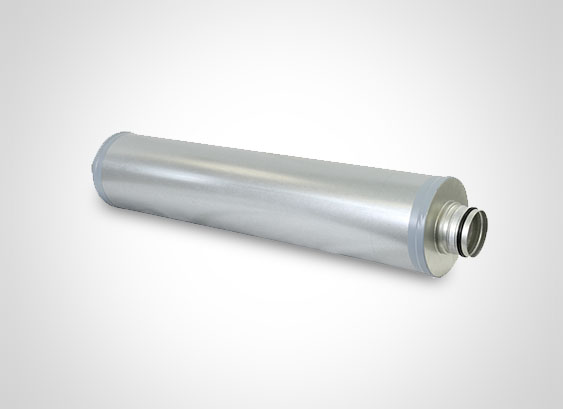

ATTENUATOR RSD, Ref. No. 15
External duct made of galvanised steel
Inner duct made of perforated Aero Aluflex duct
ATTENUATOR RSD perforated steel, Ref. No. 16
External duct made of galvanised steel or galvanised spiral duct
Inner duct made of galvanised perforated plate
for Windows 7 and 10; standalone programme
Telephony silencer - TSD, No. 13:
Make: AEROTECHNIK E. Siegwart
Type: TSD, No. 13
Flexible silencer to reduce the flow noise in round air ducts and to reduce the transmission of noise through ducts between neighbouring rooms. Outer tube and perforated inner tube made of two-layer aluminium tape. Absorption material made of mineral wool with RAL quality mark, harmless to health according to EU Directive 97/69, temperature resistant up to 150 ° C. Mineral wool with glass fleece, abrasion-resistant (up to 20 m / s) as trickle protection and non-flammable building material class A1.
Variants:
Lengths: 500, 750, 1000, 1250, 1500, 1750, 2000 mm
Insulation layer thicknesses: 25, 50, 75 or 100 mm
With lip seal (TSD, No. 913)
Duct silencer - RSD, No. 15:
Make: AEROTECHNIK E. Siegwart
Type: RSD, No. 15
Rigid silencer to reduce the flow noise in round ducts and to reduce the transmission of noise through ducts between neighbouring rooms. Outer tube made of galvanized smooth tube, inner tube made of perforated two-layer aluminium tape. Absorption material made of mineral wool with RAL quality mark, harmless to health according to EU Directive 97/69, temperature resistant up to 150 ° C. Mineral wool with glass fleece, abrasion-resistant (up to 20 m / s) as trickle protection and non-flammable building material class A1.
Variants:
Lengths: 500, 750, 1000, 1250, 1500, 1750, 2000 mm
Insulation layer thicknesses: 25, 50, 75 or 100 mm
With lip seal (RSD, No. 915)
Duct silencer - RSD, No. 16:
Make: AEROTECHNIK E. Siegwart
Type: RSD, No. 16
Rigid silencer to reduce the flow noise in round ducts and to reduce the transmission of noise through ducts between neighbouring rooms. Outer tube and perforated inner tube made of galvanized sheet steel. Absorption material made of mineral wool with RAL quality mark, harmless to health according to EU Directive 97/69, temperature resistant up to 150 ° C. Mineral wool with glass fleece, abrasion-resistant (up to 20 m / s) as trickle protection and non-flammable building material class A1.
Variants:
Lengths: 500, 750, 1000, 1250, 1500, 1750, 2000 mm
Insulation layer thicknesses: 25, 50, 75 or 100 mm
With lip seal (RSD, No. 916)
